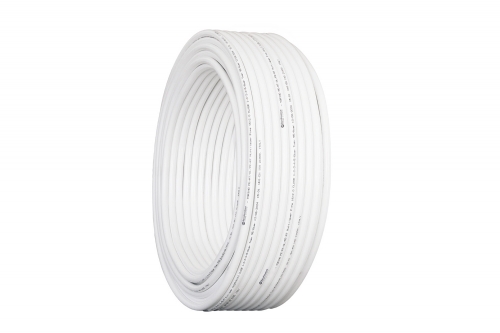

PE-X/AL PIPE

SaniPlastica Multilayer pipes consist of an inner PEX-b layer, an aluminum middle layer welded lengthwise (head-head) with TIG technology and an outer white PEX-b layer. The adhesive middle layers join the aluminum and PEX-b layers homogeneously. The aluminum layer provides a safe barrier against oxygen and other gases along with an outstanding resistance to crushing. SaniPlastica Multilayer pipes are fit for domestic water, heating and cooling systems according to standard EN 21003.

TECHNICAL DATA

Application classes (EN ISO 21003-1): 1, 2, 4, 5
Min. working temperature: -60 °C (but always above freezing temperature of transfer fluid)
Max. working temperature (EN ISO 21003-1): 95÷100 °C
Max. working pressure (EN ISO 21003-1): 10 bar
Density at 23 °C: > 0,950 g/cm3 (polyethylene mesh)
Softening temperature: 135 °C
Thermal expansion coefficient: 0,026 mm/m K
Thermal conductivity: 0,42÷0,52 W/m K
Surface roughness: 0,007 mm
Permeability to oxygen: 0 mg/l
Reaction to fire (EN 13501-1): C-s2,d0

PIPE (mm)	D (mm)	D (mm)	THICKNESS (mm)	WEIGHT (g/m)	WEIGHT VOLUME (l/m)	BENDING MINIMUM RADIUS without pipe bender (mm)
16x2	16	12	2	113	0,113	80
20x2	20	16	2	156	0,201	100
26x3	26	20	3	286	0,314	130
32x3	32	26	3	390	0,53	160

PRODUCT CODE	SIZE (mm)	PACK (m)
MB1A0116L1	16 x 2	100
MB1A0116L2	16 x 2	200
MB1A0116L5	16 x 2	500
MB1A0120L1	20 x 2	100
MB1A0120L2	20 x 2	200
MB1A0126L1	26 x 3	50
MB1A0132L1	32 x 3	50

CLASS	T D		T MAX		T M		Example of Application
	C	time, years	C	time, years	C	time, years
1	60	49	80	1	95	100	Hot water supply (60 C)
2	70	49	80	1	95	100	Hot water supply (70 C)
4	40	20	70	2,5	100	100	Underfloor heating and low-temperature radiators
	60	25
5	40	25	90	1	100	100	High-temperature radiators
	60	10
